Grip-Tie - Facade Mechanical Stabilization - Prosoco

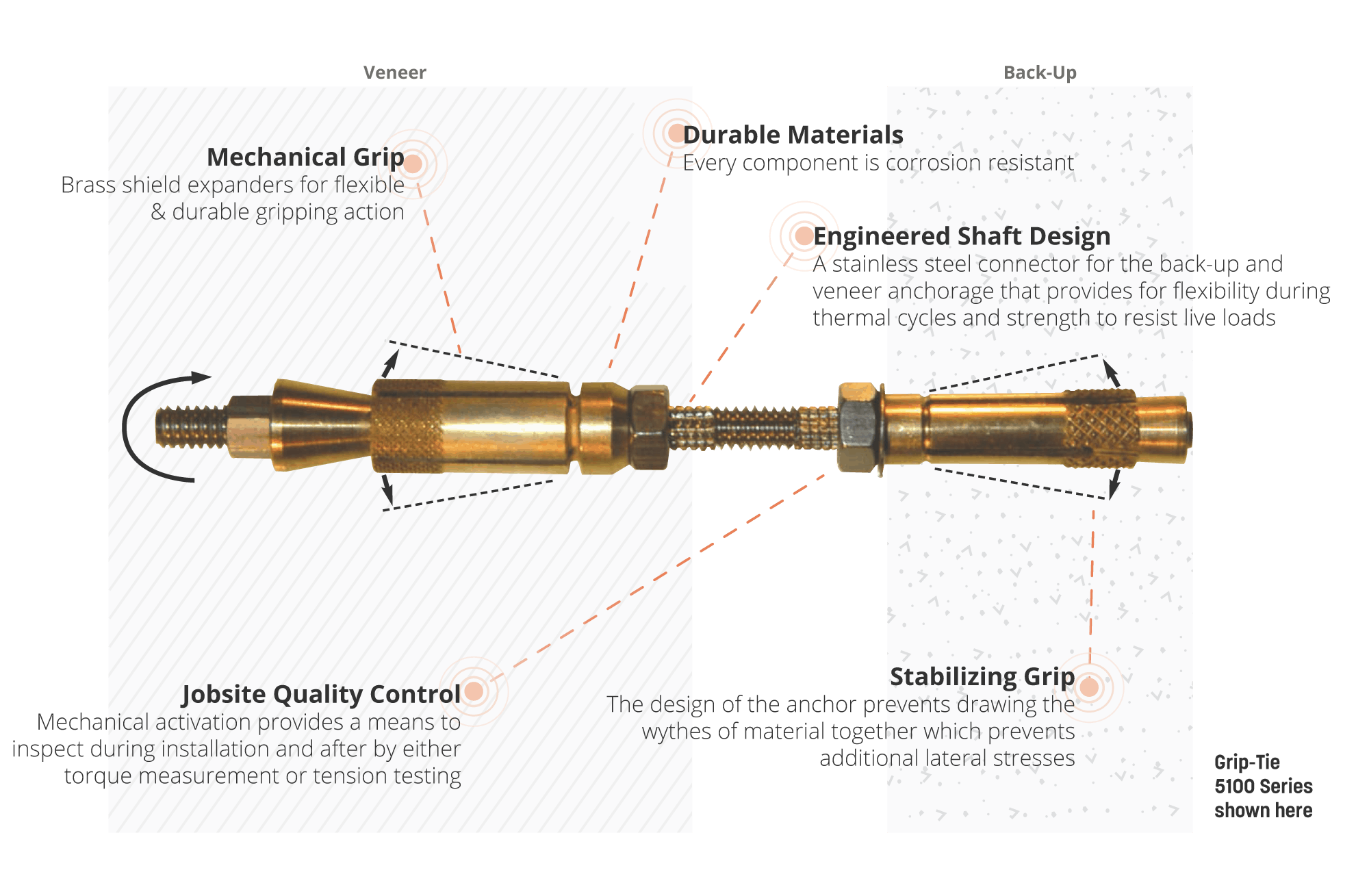

High-strength mechanical anchors that fortify and stabilize brick, stone, and precast veneers against external forces. PROSOCO Grip-Ties re-anchor masonry or stone facades to metal studs, wood studs, structural steel, concrete, or brick back-up structures without exposed hardware or disruptive hammering. Key Features: - Dual-expansion anchor design grips both veneer and back-up material - No exposed hardware for a clean aesthetic - Multiple lengths accommodate various wall configurations - Easy post-installation quality control and testing - Compatible with sealants for sealed back-up connections Installation & Spacing: Made from corrosion-resistant materials, Grip-Ties install with hand or power tools. Typical spacing is one tie per four square feet for masonry or concrete back-up; 16-inch horizontal by 24-inch vertical spacing for metal or wood stud back-up. Consult local design and code professionals for specific wind-load and spacing requirements. The anchor establishes mechanical connection without drawing walls together, eliminating additional tension stresses between wythes and extending your facade's design life. Available in Quebec, Ontario and all Canada
